Handheld Laser Welding Machine

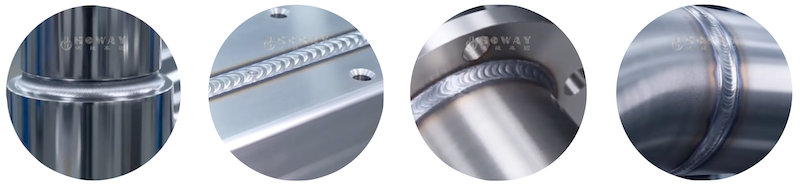

Application: available for stainless steel, iron and galvanized steel welding, such as lift, kitchen cabinet, shelf, window, door and metal sheet shell, etc.
Features of fiber laser welding:
1. Welding/cutting/cleaning functions all-in-one
2. Deep penetration on medium thick plate
3. Low heat input welding on thin plate
4. Wide range of applicable materials
5. Ultimate low spattering technology
Model
HLWS1000
HLWS1500
HLWS2000
HLWS3000
Max. laser power (W)
1000
1500
2000
3000
Rated power (KW)
3.0
4.5
6.0
8.0
Welding depth (mm)
0.2~2.5
0.2~3.5
0.2~4.5
0.2~6.0
Power input
AC220V
AC380V
Laser wavelength (nm)
1070+5
Fiber length (m)
8~15
Protective gas
nitrogen / argon
Cooling mode
water
Max. welding seam (mm)
2
Welding speed (cm/minute)
70~200
Net weight / Gross weight (kgs)
105 / 150 (subject to actual configuration)
Machine dimension / Packing dimension (mm)
1020X870X480 / 1050X900X500 (subject to actual configuration)
Automatic wire feeder
Optional
Feeding wire diameter (mm)
0.8/1.0/1.2/1.6
Parameter settings for different welding materials: (for reference only)
Materials | Thickness | Wire feeding speed | Scan speed | Scan width | Peak power | Duty cycle | Frequency | Welding wire |
Stainless Steel |
1mm | 70mm/s | 300mm/s | 2.0mm | 400W | 100% | 2000Hz | 1.0mm |
2mm |
70mm/s |
300mm/s |
2.5mm |
600W |
100% |
2000Hz |
1.2mm | |
3mm |
70mm/s |
300mm/s |
3.0mm |
900W |
100% |
2000Hz |
1.6mm | |
Carbon Steel |
1mm |
80mm/s |
300mm/s |
2.5mm |
400W |
100% |
2000Hz |
1.0mm |
2mm |
80mm/s |
300mm/s |
3.0mm |
700W |
100% |
2000Hz |
1.2mm | |
3mm |
80mm/s |
300mm/s |
4.0mm |
1000W |
100% |
2000Hz |
1.6mm | |
Aluminum |
2mm |
60mm/s |
300mm/s |
2.6mm |
700W |
100% |
2000Hz |
1.2mm |
2mm |
60mm/s |
300mm/s |
2.8mm |
900W |
100% |
2000Hz |
1.2mm |
|
3mm |
60mm/s |
300mm/s |
3.0mm |
1200W |
100% |
2000Hz |
1.6mm |
