Solar photovoltaic

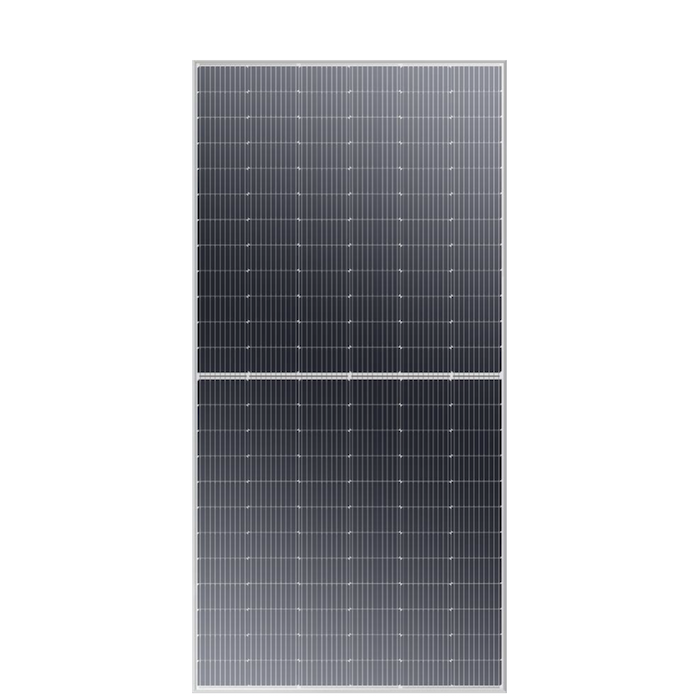

Mono PV module 530~550Watt
- Mono PV
- 530~550Watt
- 182mm cell
- 144 cells
- Description:
Performance parameter
|
Model |
MM530-144 | MM540-144 | MM550-144 | |||
| STC | NOCT | STC | NOCT | STC | NOCT | |
|
Peak power (W) |
530 | 401 | 540 | 408 | 550 | 416 |
|
Efficiency |
20.50% | / | 20.90% |
/ |
21.30% |
/ |
|
Maximum operating voltage (V) |
41.31 | 38.57 | 41.64 | 38.99 | 41.96 | 39.43 |
|
Maximum operating current (A) |
12.83 | 10.39 | 12.97 | 10.47 | 13.11 | 10.55 |
|
Open circuit voltage (V) |
49.30 | 46.18 | 49.60 | 46.43 | 49.90 | 46.68 |
|
Short circuit current (A) |
13.72 | 11.01 | 13.86 | 11.09 | 14.00 | 11.17 |
|
Working temperature (℃) |
-40~85 |
|||||
|
Output power tolerance (W) |
0~4.99 |
|||||
|
Maximum system voltage (V/DC) |
1500 | |||||
|
NOCT (℃) |
45±2 |
|||||
|
Maximum fusing current (A) |
25 | |||||
STC: Irradiance 1000W/m2, cell temperature 25℃, air mass 1.5
NOCT: Irradiance 800W/m2, ambient temperature 20℃, air mass 1.5, wind speed 1m/s
Mechanical parameter
|
Monocrystalline (mm) |
182X91 |
|
Number of cells (Pcs) |
144(72X2) |
|
Weight (Kgs) |
28.60 |
|
Size (mm) |
2280X1136X35 |
|
Glass |
Toughened glass |
|
Frame material |
Silver anodized aluminum |
| Junction box | IP68 |
| Cable Connector | MC4 |
Temperature parameter
|
Temperature coefficient of short circuit current |
0.045%/℃ |
|
Temperature coefficient of open circuit voltage |
-0.275%/℃ |
|
Maximum power temperature co-efficient |
-0.350%/℃ |
Package
|
40'HC |
704Pcs (32Pcs/Pallet, 22Pallets) |
All right reserved: Specifications are subject to change without prior notice.
