Solar photovoltaic

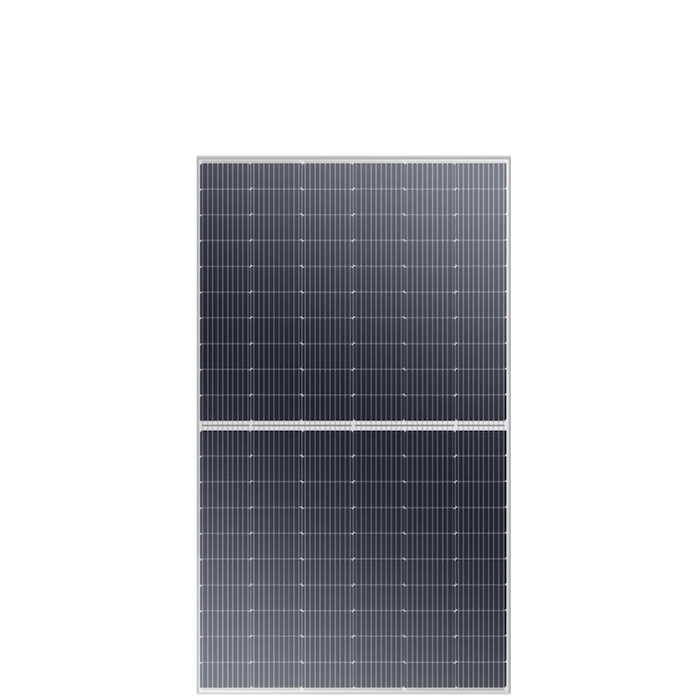

Mono PV module 440~460Watt
- Mono PV
- 440~460Watt
- 182mm cell
- 120 cells
- Description:
Performance parameter
|
Model |
MM440-120 | MM450-120 | MM460-120 | |||
| STC | NOCT | STC | NOCT | STC | NOCT | |
|
Peak power (W) |
440 | 333 | 450 | 341 | 460 | 349 |
|
Efficiency |
20.30% | / | 20.60% |
/ |
21.10% |
/ |
|
Maximum operating voltage (V) |
34.44 | 32.09 | 34.80 | 32.54 | 35.16 | 32.99 |
|
Maximum operating current (A) |
12.78 | 10.38 | 12.93 | 10.48 | 13.08 | 10.58 |
|
Open circuit voltage (V) |
40.98 | 38.61 | 41.41 | 39.03 | 41.84 | 39.47 |
|
Short circuit current (A) |
13.66 | 10.99 | 13.82 | 11.09 | 13.99 | 11.19 |
|
Working temperature (℃) |
-40~85 |
|||||
|
Output power tolerance (W) |
0~4.99 |
|||||
|
Maximum system voltage (V/DC) |
1500 | |||||
|
NOCT (℃) |
45±2 |
|||||
|
Maximum fusing current (A) |
25 | |||||
STC: Irradiance 1000W/m2, cell temperature 25℃, air mass 1.5
NOCT: Irradiance 800W/m2, ambient temperature 20℃, air mass 1.5, wind speed 1m/s
Mechanical parameter
|
Monocrystalline (mm) |
182X91 |
|
Number of cells (Pcs) |
120(60X2) |
|
Weight (Kgs) |
24.00 |
|
Size (mm) |
1910X1136X35 |
|
Glass |
Toughened glass |
|
Frame material |
Silver anodized aluminum |
| Junction box | IP68 |
| Cable Connector | MC4 |
Temperature parameter
|
Temperature coefficient of short circuit current |
0.045%/℃ |
|
Temperature coefficient of open circuit voltage |
-0.275%/℃ |
|
Maximum power temperature co-efficient |
-0.350%/℃ |
Package
|
40'HC |
744Pcs (31Pcs/Pallet, 24Pallets) |
All right reserved: Specifications are subject to change without prior notice.
